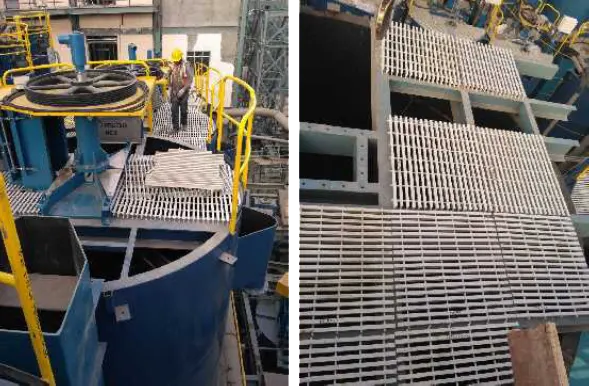

Pultruded Grating
| Project : | 1.5 MTPA Lead – Zinc Beneficiation Plant, Phase – III, At S.K.Mines, Rajasthan |
| Size : | I beam – 38 * 15 * 6 |
| Design Load Capacity : | 500 kg/m2 for 38 mm height, 800 kg/m2 for 50 mm height |
| MOC : | Isopthalic Resin |
| Material Type : | Fire Retardant – UV stabilized |
| Colour : | Light Gray Color – (7035) |
| Qty : | 753 m2 / 192 m2 |
| Fabrication Method : | Fabricated from Pultruded Profile |
| Applicable Code : | ASTM D 638/D 790 |
| Inspection Agency : | L & T |
| Year of Execution : | 2018 |

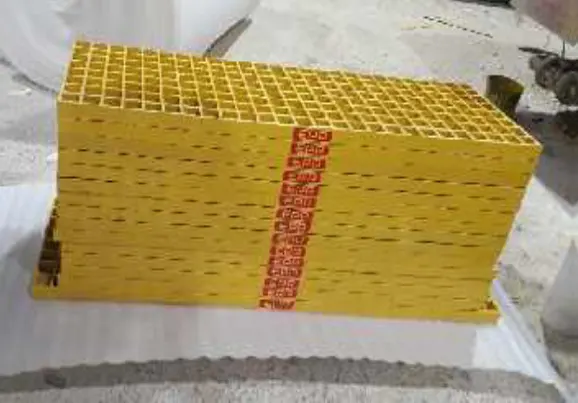

Molded Grating
| Project : | Al Fatah Water & Power |
| Size : | 38 * 38 * 6 mm thk. |
| Design Load Capacity : | 1000 kg/m2 |
| MOC : | Isopthalic Resin – FR Grade UV stabilized |
| Material Type : | Fire Retardant – V0 as per UL 94 |
| Colour : | Golden Yellow |
| Qty : | 700 m2 |
| Fabrication Method : | Molded |
| Applicable Code : | ASTM D 638/D - 790/D - 2584 |
| Inspection Agency : | SGS |
| Year of Execution : | 2012 – 2013 |

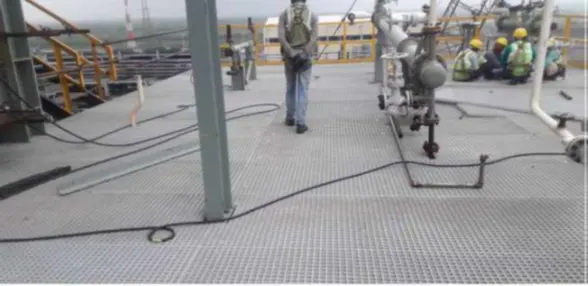

Molded Grating
| Project : | HIIR (Halogenated Butyl Rubber) Project at Jamnagar – JV |
| Size : | 38 * 38 * 6.6 |
| Design Load Capacity : | 500 kg/m2 |
| MOC : | Isopthalic Resin |
| Material Type : | Fr Grade – UV stabilized |
| Colour : | Light Gray – (RAL 7035) |
| Qty : | 1750 m2 |
| Fabrication Method : | Molded |
| Applicable Code : | ASTM D 2584/2583/D 638/D 790 |
| Inspection Agency : | BVQI |
| Year of Execution : | 2019 |

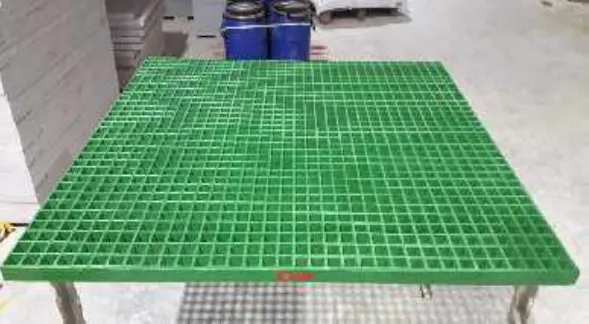

Molded Grating
| Project : | Replacement of existing trench cover Due to Corrosion at TSL, Angul |
| Size : | 38 * 38 * 6.4 mm thk |
| Design Load Capacity : | 500 kg/m2 |
| MOC : | Isopthalic Resin |
| Material Type : | Fire Retardant – V1 as per UL 94 – UV stabilised |
| Colour : | Pure Gree – ( RAL – 6037) |
| Qty : | 1520 m2 |
| Fabrication Method : | Molded |
| Applicable Code : | ASTM D 2584 /ASTM D 2583 |
| Year of Execution : | 2019 |

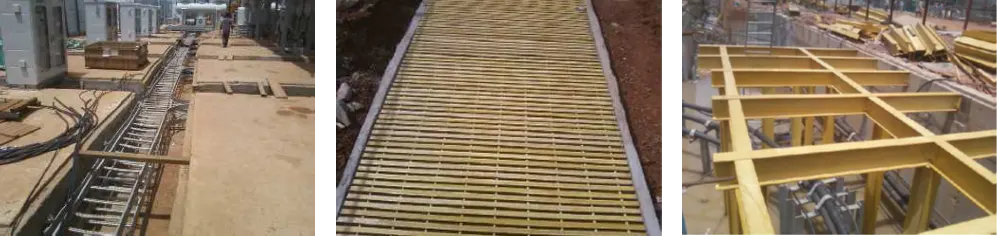

Putruded Grating for Cable Trench cover with pultruded support at Pit and Chequered plate for pit cover
| Project : | 2400 MW Samalkot Coal Based Captive Power Plant Expansion Project, Samalkot, Andhra Pradesh. |
| Size : | Grating : I beam 50 * 25 * 4 mm thk. I beamSupport : 201 * 103 * 9.5 mm thk. I beam Support : 300 * 150 * 12 mm thk. Chequered Plate – 5 mm thk. |
| Design Load Capacity : | 500 kg/m2 |
| MOC : | Isopthalic Resin |
| Material Type : | FR grade – V1 – UV stabilised |
| Colour : | Golden Yellow |
| Qty : | 4000 m2 / 2500 running m/2500 running meter/ 1500 m2 |
| Fabrication Method : | Pultrusion/ Hand lay up |
| Applicable Code : | ASTM D 638/790/2584/2583 |
| Year of Execution : | 2012 |
Molded Grating with Chequered Plate
| Project : | Kirumi Kia Munjiari Irrigation Scheme (Kenya) |
| Application : | Irrigation Water |
| Scope of EPP : | Design, Engineering, Manufacturing, Testing & Supply of GRP Pipes |
| Project Value : | USD 638,075.00 |
| Type of Project : | Standard: AWWA M 45 / AWWA C 950 |
| Chosen Pipe System : | GRP Filament Wound |
| Pipe Details/Material : | GRP with Isophthalic Resin |
| Total Pipe Length : | 9.5 Kms. |
| Diameter DN Min./Max. : | 450 MM – 700 MM |
| Pressure PN Min./Max. : | PN 6 / PN 8 / PN 10 / PN 12.5 |
| Stiffness SN Min./Max. : | 248 kpa |
| Joints Type : | Coupler End |
| Fittings Used : | Bends, Flanges |
| Installation Details : | Above Ground / Under Ground |
| Burial Depth : | 1.5 - 2 Meters |
| Project Duration : | 2018 - 2019 |

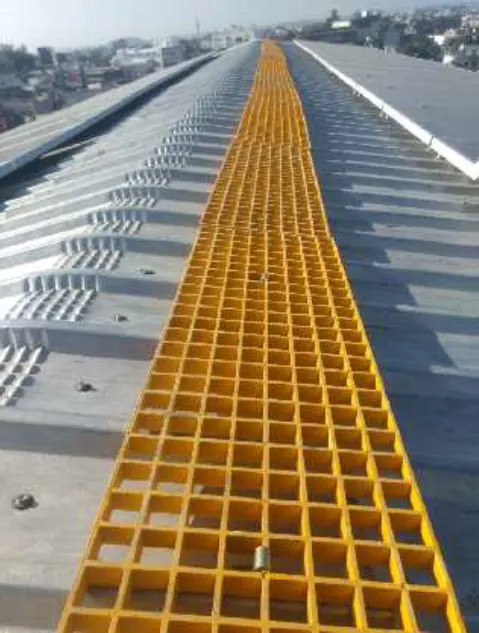

Molded Grating
| Project : | Solar Project |
| Size : | 38 * 38 * 25 * 5.9 mm thk. |
| Design Load Capacity : | 500 kg/m2 |
| MOC : | Isopthalic Resin |
| Material Type : | Fire Retardant – V1 – UV stabilized |
| Colour : | Golden Yellow – RAL (1004) |
| Qty : | 210 m2 |
| Fabrication Method : | Grating – Molded |
| Applicable Code : | ASTM D 2583/2584 |
| Year of Execution : | 2020 |

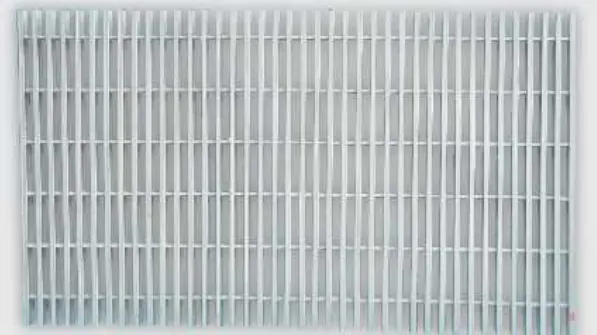

Pultruded Grating
| Project : | Chemical Plant - Expansion Cellulose Division |
| Size : | 50 * 25 * 15 * 4 |
| Design Load Capacity : | 1000 kg/ m2 |
| MOC : | Isopthalic Resin |
| Material Type : | Fire Retardant – low flammability as per IS 6746 UV stabilized |
| Colour : | Light Grey ( RAL 7035) |
| Qty : | 630 m2 |
| Fabrication Method : | Pultruded profile fabrication |
| Applicable Code : | ASTM D 2583/2584 |
| Year of Execution : | 2013 |

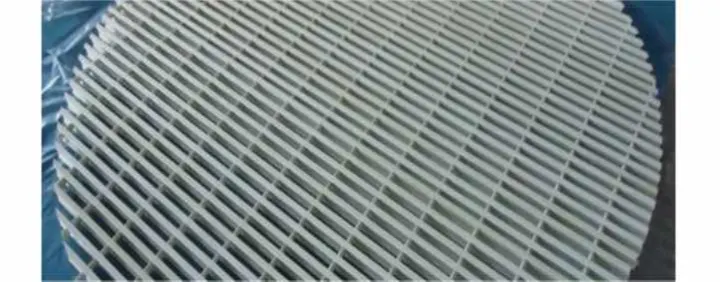

Pultruded Grating
| Project : | Solar Project |
| Size : | 25 * 25 * 15 * 3.6 mm |
| Design Load Capacity : | 350 kg/m2 |
| MOC : | Normal Grade Vinyl Ester Resin |
| Material Type : | Fire Retardant – Low flammability - UV stabilised |
| Colour : | Light Grey – (RAL 7035) |
| Qty : | 6000 m2 |
| Fabrication Method : | Pultrusion |
| Applicable Code : | ASTM D – 790/638 – 2584/2583 |
| Year of Execution : | 2018 |

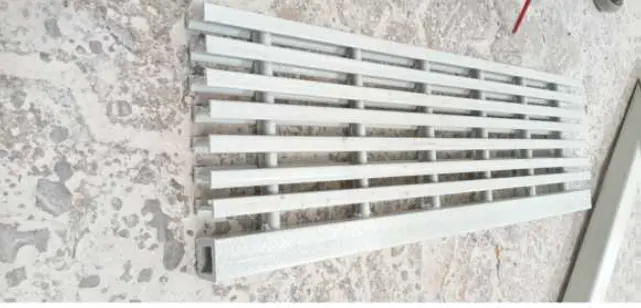

Pultruded Grating
| Project : | Cement Industries |
| Size : | 25 * 25 * 15 * 3.6 mm thk. |
| Design Load Capacity : | 350 kg/m2 |
| MOC : | Normal Grade Vinyl Ester Resin |
| Material Type : | Fire Retardant – Low flammability - UV stabilised |
| Colour : | Light Grey – (RAL 7035) |
| Qty : | 6000 m2 |
| Fabrication Method : | Pultrusion |
| Applicable Code : | ASTM D – 790/638 – 2584/2583 |
| Year of Execution : | 2018 |
FRP Ladder Type Cable Tray with Flat Cover & Fittings
| Project : | Mundra LPG Terminal |
| Location : | Mundra, Gujarat, India. |
| Details Size Qty. : | 600 × 100 × 6 mm - 9220 m, 300 × 100 × 6 mm - 864 m, 150 × 100 × 6 mm - 643 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Dark Admiralty Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2015 |

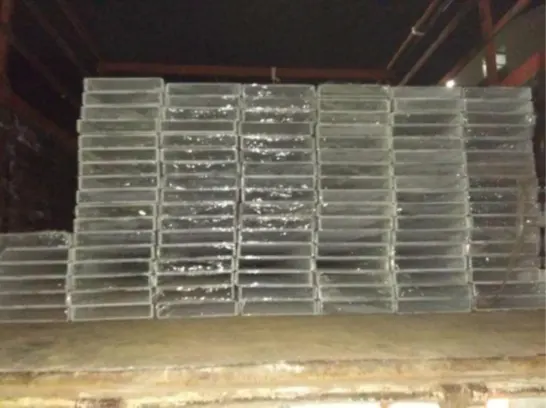

FRP Perforated Cable Tray
| Project : | ISOM Project |
| Size Qty. : | 150 × 75 × 4 mm - 6000 m Dark Gray, 200 × 75 × 4 mm - 1000 m Dark Gray, 300 × 75 × 4 mm - 2000 m Dark Gray, 60 × 30 × 4 mm - 2500 m Smoke Gray, 108 × 54 × 4 mm - 1500 m Smoke Gray |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Dark Admiralty Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard :NEMA FG – 1 : | 1993 |
| Year of Execution : | 2016 |

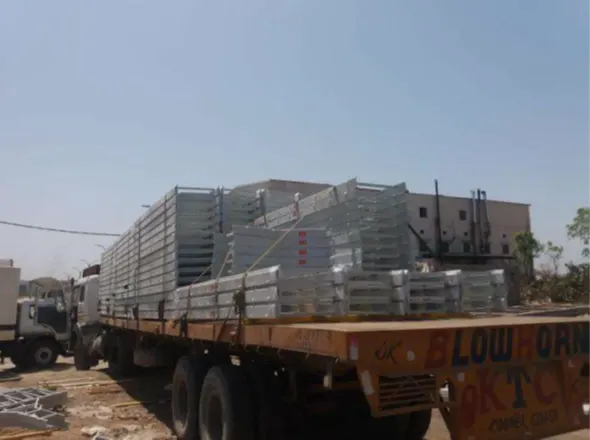

FRP Ladder Type Cable Tray
| Project : | Adani Dhamra |
| Details Size Qty. : | 600 × 100 × 6 mm - 16973 m, 450 × 100 × 6 mm - 3368 m, 300 × 100 × 6 mm - 4307 m, 150 × 100 × 4 mm - 8568 m, 75 × 50 × 4 mm - 11675 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Pebble Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2016 |

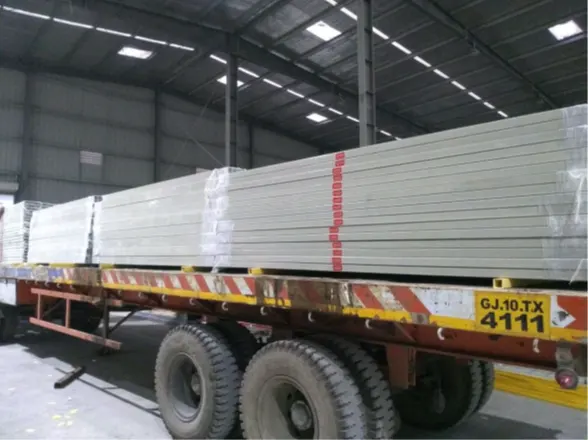

FRP Perforated Cable Tray
| Project : | Reliance Industries |
| Details Size Qty. : | 106 × 54 × 4 mm - 650 m, 150 × 100 × 3 mm - 800 m, 200 × 100 × 3 mm - 500 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Light Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2016 |

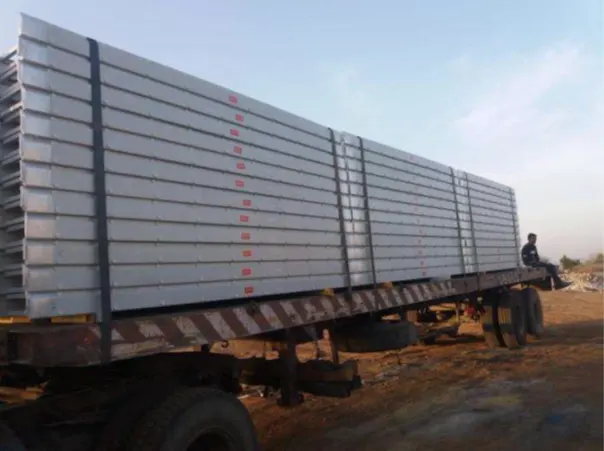

FRP Perforated Cable Tray
| Project : | Adani Dhamra TH & MHS System |
| Details Size Qty. : | 75 × 50 × 4 mm - 27000 m, 150 × 100 × 4 mm - 7650 m, 300 × 100 × 6 mm - 4150 m, 450 × 100 × 6 mm - 3250 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Pebble Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2017 |

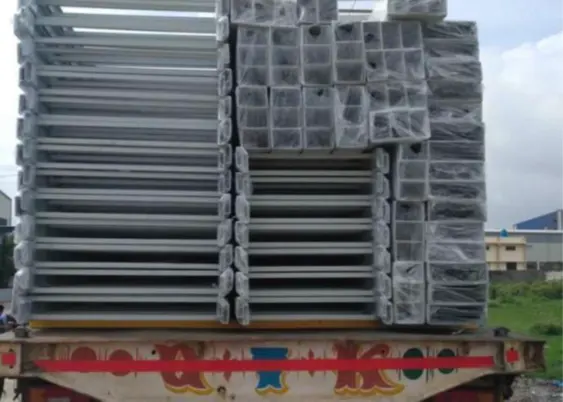

FRP Ladder Type Cable Tray & Fittings
| Project : | RSPL Chemical Complex |
| Details Size Qty. : | 150 × 150 × 4 mm - 580 m, 300 × 150 × 4 mm - 6960 m, 600 × 150 × 6 mm - 355 m, 900 × 150 × 6 mm - 4750 m |
| Standard Length : | 6 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Admiral Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2017 |

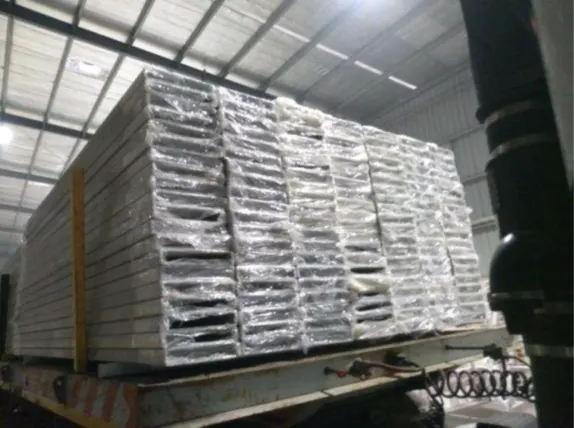

FRP Ladder Type Cable Tray & Fittings
| Project : | Haldia Petrochemicals Ltd. |
| Details Size Qty. : | 50 × 50 × 3 mm - 1842 m, 100 × 50 × 3 mm - 8950 m, 208 × 104 × 4 mm - 1400 m 300 × 150 × 3 mm (With Flat Cover) 3150 m, 600 × 150 × 4 mm (With C - Cover) 4000 m |
| Standard Length : | 2.5 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Light Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2018 |

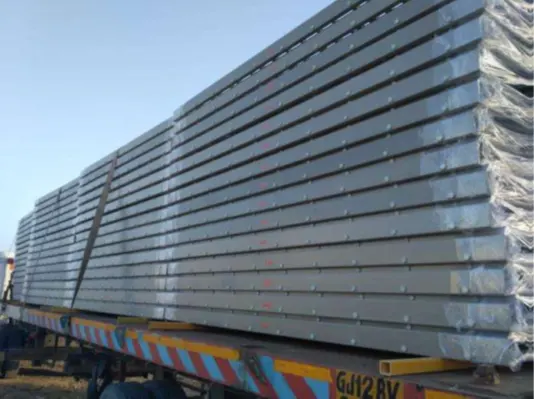

FRP Ladder Type Cable Tray with Flat Cover & Fittings
| Project : | Mundra LPG Terminal |
| Details Size Qty. : | 600 × 100 × 6 mm - 9220 m, 300 × 100 × 6 mm - 864 m, 150 × 100 × 6 mm - 643 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Dark Admiralty Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2018 |

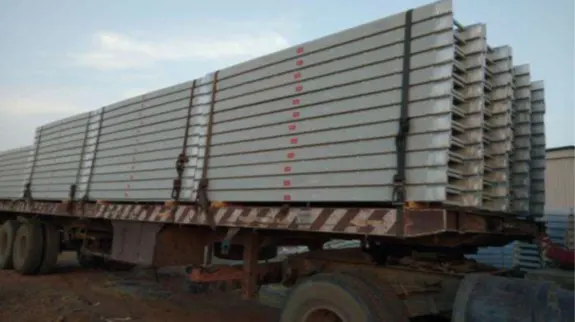

FRP Ladder Type Cable Tray with C - Cover
| Project : | Fourth Partner Energy |
| Details Size Qty. : | 100 × 50 × 3 mm - 10000 m, 150 × 50 × 3 mm - 10000 m, 200 × 50 × 3 mm - 10000 m |
| Standard Length : | 3 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Light Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2018 |

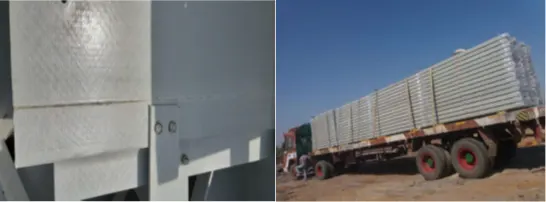

FRP Ladder Type Cable Tray with C - Cover
| Project : | Mumbai Refinery Expansion Project of HPCL - Mahul Refinery |
| Details Size Qty. : | 150 × 100 × 3 mm - 1500 m 3 m, 150 × 30 × 3 mm - 1100 m 3 m, 300 × 30 × 4 mm - 900 m 3 m, 100 × 30 × 3 mm - 1800 m 3 m, 200 × 50 × 4 mm - 200 m 3 m, 300 × 100 × 4 mm - 100 m 3 m, 60 × 20 × 3 mm - 600 m 3 m, 60 × 20 × 3 mm - 1 m 1 m, 100 × 30 × 3 mm - 1 m 1 m, 300 × 100 × 4 mm - 1 m 1 m, 450 × 100 × 4 mm - 1 m 1 m, 600 × 100 × 4 mm - 1 m 1 m, 750 × 100 × 4 mm - 3 m 15000 m, 1200 × 400 × 5 mm - 3500 m 2.5 m, 100 × 400 × 5 mm - 100 m 2.5 m, 800 × 300 × 5 mm - 100 m 2.5 m, 600 × 300 × 5 mm - 600 m 2.5 m, 400 × 200 × 5 mm - 3000 m 2.5 m |
| MOC : | Isophthalic Resin with UV Stabilizer |
| FR Grade : | Low Flammability as per IS : 6746 - 1994 |
| Colour : | Light Gray |
| Fabrication Method : | Joined with Coupler Plate |
| Applicable Standard : | NEMA FG – 1 : 1993 |
| Year of Execution : | 2019 |
