Pultruded Gratings

Fiberglass pultruded gratings are high-strength, corrosion-resistant panels made by pultruding continuous glass fiber rods and resin into I-beams or flat bars. They offer exceptional durability and a light weight versus metal alternatives, with each panel tailored for heavy-duty use. Pultruded gratings are non-conductive, rust-proof, and UV-stable, making them ideal for harsh or electrically sensitive environments. They require minimal upkeep, and installation costs often rival steel once long-term benefits are considered. These systems meet stringent industry standards for load and fire performance, and are commonly certified to UL or ASTM specifications for flame spread.

Product Inquiry

Key Features

Continuous I-beam or flat-bar construction; high fiber-to-resin ratio; Class 1 fire rating (ASTM E84) options; ANSI or OSHA compliant profiles.

Benefits

Extremely lightweight (up to 80% lighter than steel) yet high-strength; corrosion and chemical resistance for decades of service; low-maintenance (no painting/rusting); non-conductive for safety in electrical or marine applications.

Applications

Factory floors, catwalks, stair treads, platforms, bridges, trench covers, pool grates, acid or chemical plants, wastewater facilities, and any corrosive environment.

Technical Specifications

Standard panel widths (e.g. 3′×20′, 4′×20′) and depths (1″/25mm, 1.5″/38mm). Custom profiles available; typical load tables match or exceed equivalent steel. Resins include polyester or vinyl ester (Class 1 flame spread).

Unique Selling Points (USPs)

Engineered for heavy loads and wide spans while remaining easy to cut and bolt together; recessed tie-bar design for a flush top surface; can be color-coded (yellow, gray, green) for safety; competitive installed cost with steel due to lower labor and maintenance.

Our Products

Pultruded Grating

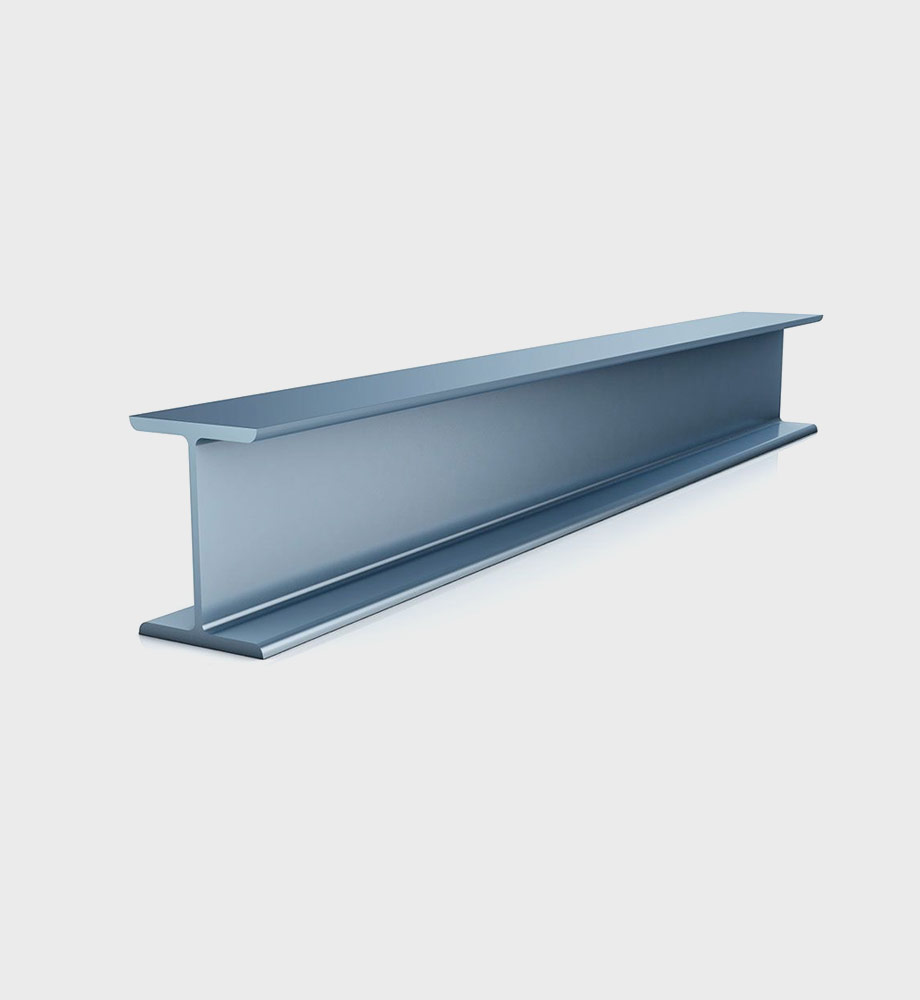

I Beam

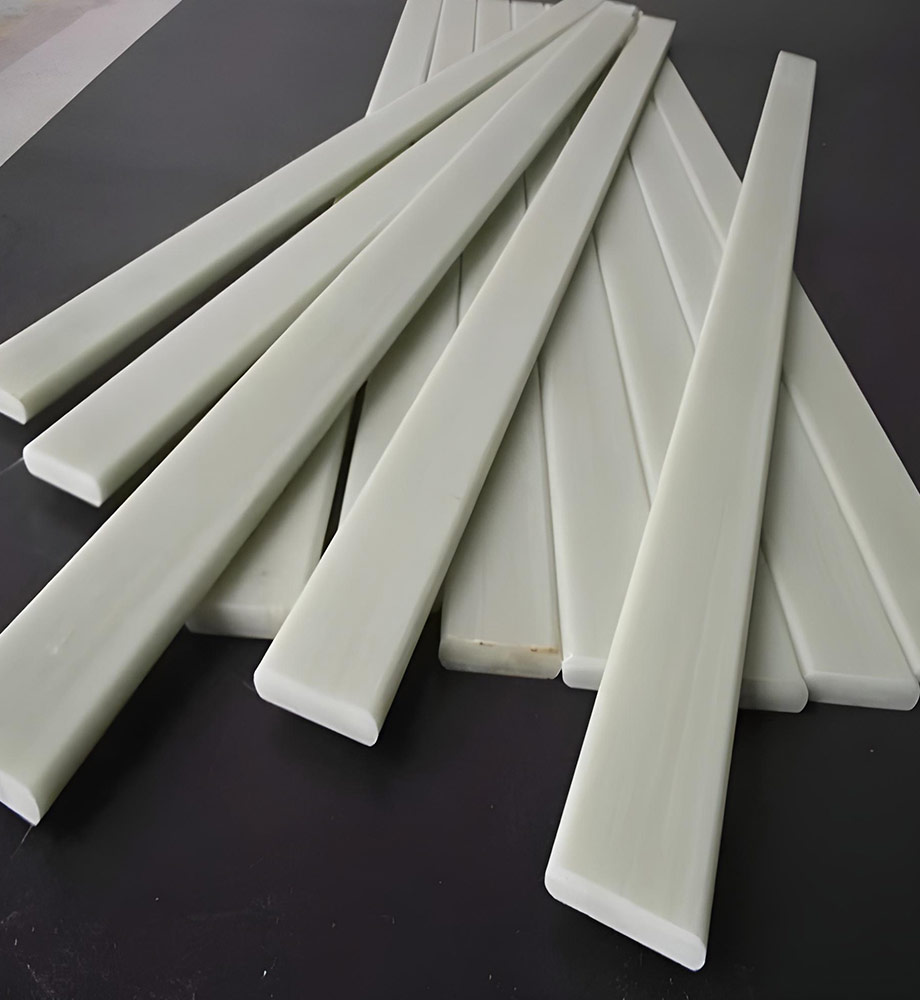

Flat bar
