SMC/FRP

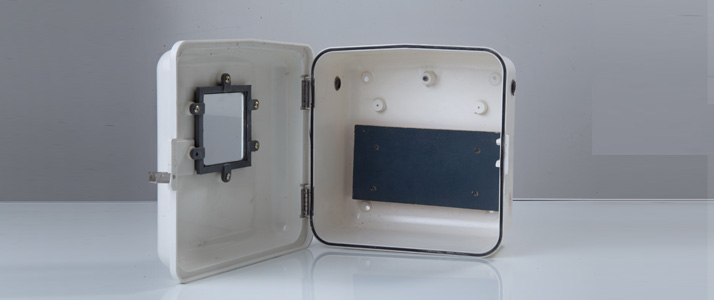

Meter Box

SMC/FRP Meter Boxes & Other EPP Electrical Products

SMC is a hot press moulded advanced plastic composites used by EPP engineers to produce SMC meter box, SMC electric junction box and other variety of electrical products. These ranges of products are free from all the issues of rusting, denting, splitting, maintenance, etc. There are certain points for design and construction of SMC meter boxes that EPP experts want you to remember-

  • Minimum inside dimensions of the meter box should be suitable for installing distinct meters that users get from the market.
  • The meter box is crafted with anti-corrosive, rust proof, dust proof, water proof, UV protected and flame retardant high grade material that should have great dielectric and mechanical strength properties.
  • The base of the meter box and cover should have at least two similar wire sealing holes for sealing purposes

EPP experts test the meter box as per the IS standards. Each test is performed in the laboratory that is accredited by the standard government bodies to ensure that the meter box meets all the requirements and safety standards.

Various types of testing includes-

  • Flammability
  • Self extinguishing
  • Glow wire test
  • Ball pressure test
  • Heat deflection temperature
  • Water absorption
  • Mechanical strength
  • Marking, dimension, and built
  • UV ageing test
  • Light transmission

EPP composites Pvt. Ltd. experts among leading suppliers of SMC electrical products like electric boxes. They have a team of experienced skilled workers that offers reasonable competitive priced products to stand ahead of the competitors.

Having more than thousand of satisfied customers with our workmanship, we ensure good quality products that meet all required standards and customer’s specifications.

You can put requests in a mail and send us at our email address directly. To inquire about SMC meter box, navigate to our inquiry page.

  • Salient Features
  • Technical Specifications
  • Quality Specifications

Salient Features

  • Single piece molded without any joints
  • Concealed metal hinges
  • Mounting screws fitted from inside
  • Metal hardware for wire seal
  • Adequate space for meter and cutouts
  • Wide range for different applications
  • Lightweight, yet strong
  • Weatherproof
  • Prices matching conventional meter boxes
  • Shockproof
  • Free from pilferage
  • Maintenance-free
  • Lower thermal conductivity and Good adaptability dimensional stability with UV resistance and Flexibility in design

Technical Specification

Range & Specifications
Code No. Inside Dimensions (mm) H x W x D Description
EPP SP 2520 250 X 200 X 105 L.T. 1 phase kwh meter
EPP SP 2522 250 X 220 X 135 L.T. 1 phase kwh meter
EPP SP 2525 250 X 250 X 160 L.T. 1 phase kwh meter
EPP TMB 350270 350 X 270 X 210 Kwh Meter
EPP TMB 375270 375 X 270 X 210 Static Meter
EPP TMB 390225 390 X 225 X 140 Kwh Meter
EPP TMB 400300 400 X 300 X 210 Kwh Meter
EPP TMB 450375 450 X 375 X 200 Kwh Meter
EPP MMMB 570280 570 X 280 X 215 HT TVM with TTB
EPP MMMB 650350 650 X 350 X 255 1 PH X 4;3 PH X 3
EPP MMMB 700480 700 X 480 X 210 1 PH X 4/6; 3PH X 4
EPP MMMB 650350 DD 650 X 350 X 255 1 PH X 4/3; PH X 3
EPP MMMB 700480 SD 700 X 480 X 210 1 PH X 4/6; 3PH X 4
EPP DTCMB 810350 DD 810 X 350 X 250 LT TVM With CTS
EPP LTCTMB 900350 DD 900 X 350 X 250 LT kwh/TVM with Fuses
EPP LTCTMB 900450 DD 900 X 450 X 250 LT TVM with CTs
EPP TMB 350270 350 X 270 X 210 Kwh Meter
EPP TMB 375270 375 X 270 X 210 Static Meter
EPP TMB 390225 390 X 225 X 140 Kwh Meter
EPP TMB 400300 400 X 300 X 210 Kwh Meter
EPP TMB 450375 450 X 375 X 200 Kwh Meter
EPP MMMB 570280 570 X 280 X 215 HT TVM With TTB
EPP MMMB 650350 650 X 350 X 255 1PH X 4;3 PH X 3
EPP MMMB 700480 700 X 480 X 210 1PH X 4/6; 3PH X 4
EPP MMMB 650350D 650 X 350 X 255 1PH X 4; 3 PH X 3
EPP MMMB 700480 SD 700 X 480 X 210 1 PH X 4/6; 3PH X 4

Quality Specifications

  • Qualification as per Customer specifications
